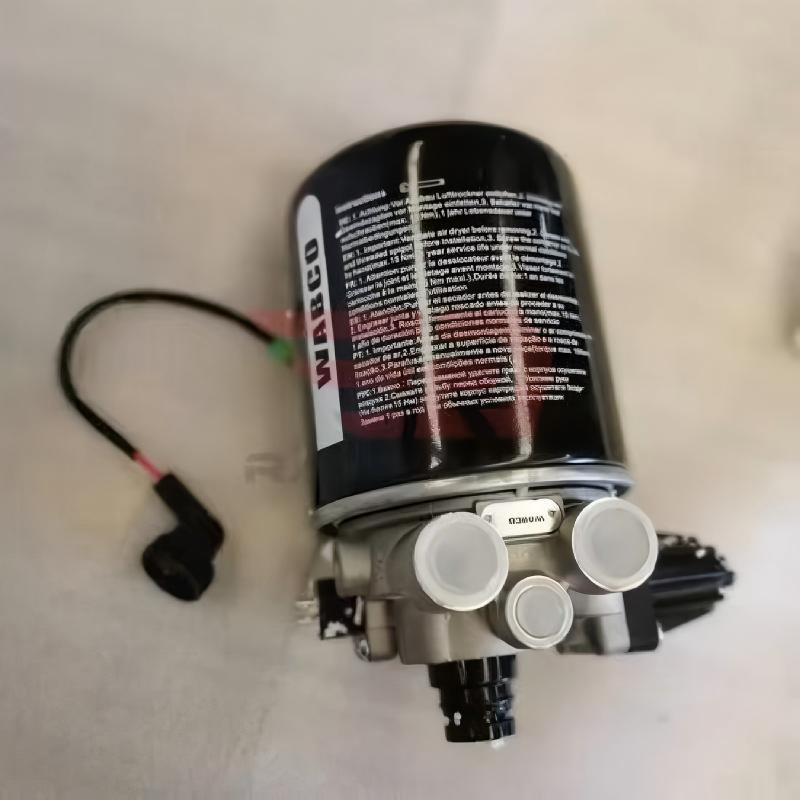

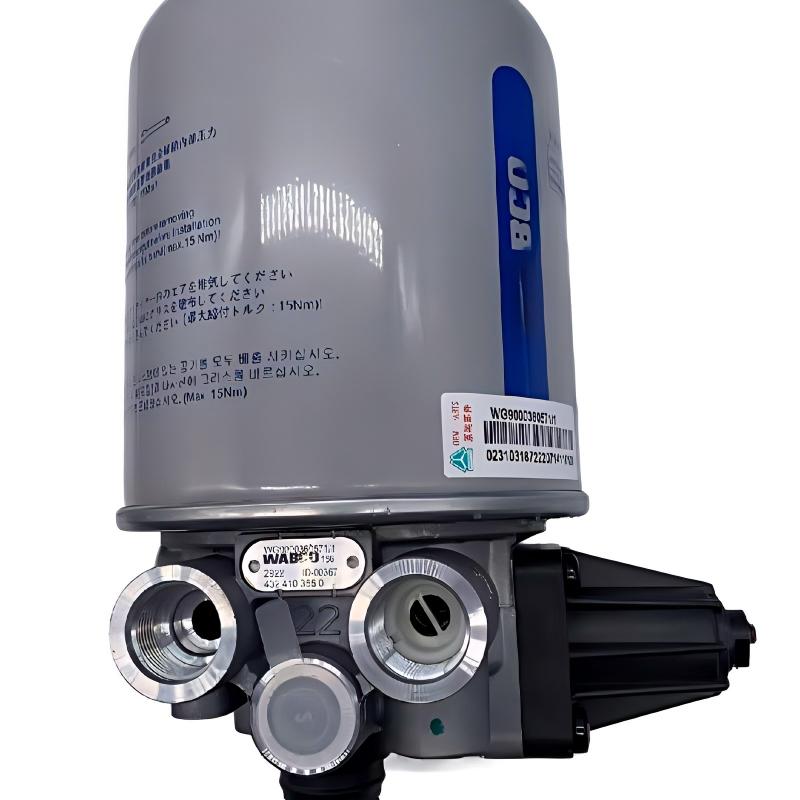

Air Dryer for Sinotruk HOWO (WG9000360521)
- - OEM replacement: Direct fit for WG9000360521, matches HOWO original interface and size
- - Super drying: High-density adsorbent, efficient moisture/oil removal, protects brake system
- - Built-in 24V heater: Auto on/off at low temp, prevents freezing in cold conditions
- - Premium construction: Die-cast aluminum body, anti-corrosion, durable for harsh environment
- - Fast regeneration: Automatic purge cycle, maintains stable dry air supply
- - Easy installation: Standard ports & mounting, plug-and-play, no modification
Product Parameters
- OEM Number: WG9000360521
- Size (L×W×H): 220mm × 150mm × 160mm
- Working pressure: 0.8–1.0 MPa
- Cut-off pressure: 8.5±0.2 bar
- Heater: 24V DC, 100W
- Temperature range: -40°C to +65°C
- Port thread: M22×1.5 (inlet/outlet), M16×1.5 (regeneration)
- Net weight: 4.2 kg
- Material: Die-cast aluminum + high-grade desiccant
- Certification: ISO9001, CE
Product Introduction
This air dryer is a key component of HOWO truck pneumatic system, designed to purify compressed air by removing moisture, oil and particulates. It prevents ice blockage in winter and corrosion inside pipelines, extending lifespan of valves, brake chambers and all pneumatic parts.
Equipped with 24V electric heater and automatic regeneration, it ensures stable dry air output under extreme temperatures. Precision machining and strict leakage tests guarantee consistent performance for heavy-duty operation.
Applicable Models
- Sinotruk HOWO 336, 371, 380, 420 HP
- HOWO A7, T7H, TX, T5G, MAX, N5G, N7G
- HOWO 6×4, 8×4 tractors, dump trucks, cargo trucks
- Sitrak C5H, C7H, Hohan N series
- Steyr, Golden Prince series
