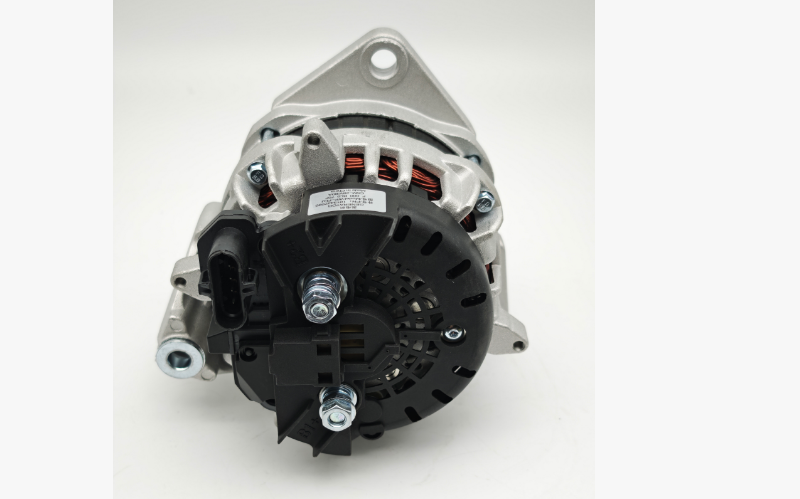

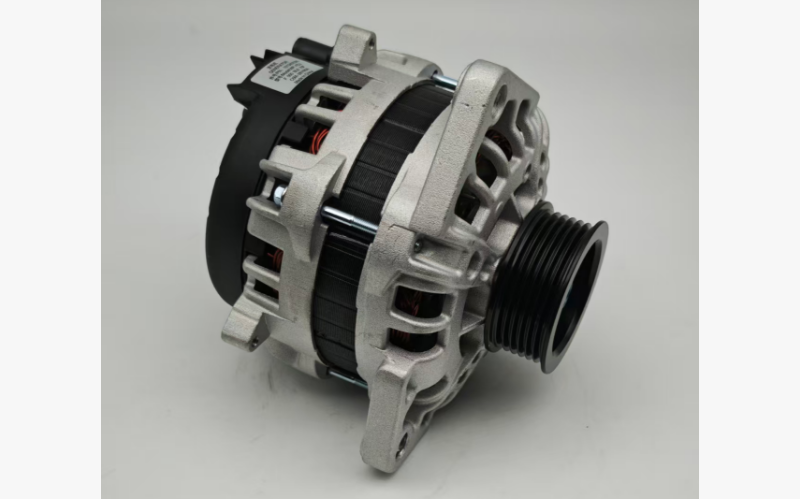

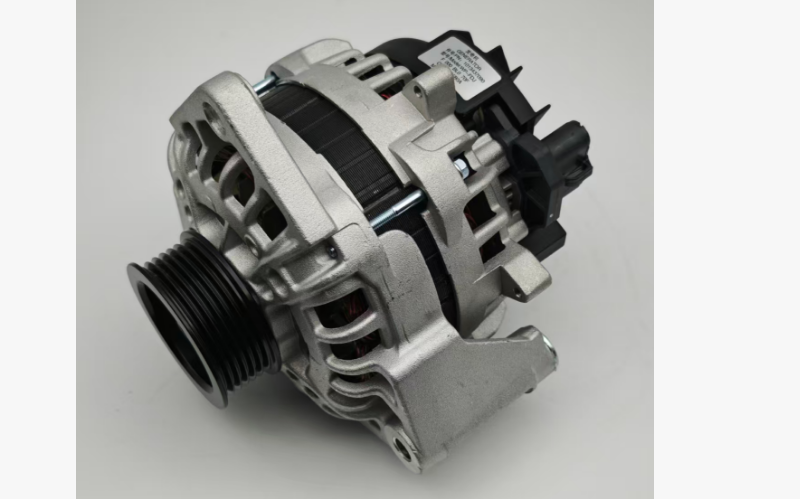

Alternator VG1095094002/1013437090；Sinotruk Weichai WD615 Engine Spare Part

Technical Parameters

- OEM Part No.: VG1095094002 / 1013437090

- Product Type: Engine Alternator

- Matching Engine: Weichai WD615 Diesel Engine

- Applicable Vehicle: Sinotruk HOWO, HOWO A7, HOWO T5, HOWO T7H Heavy-duty Truck

- Rated Voltage: 28V

- Rated Current: 70A

- Core Material: Oxygen-free high-temperature resistant enameled copper wire

- Overall Dimension: 250×250×210mm

- Net Weight: 7.4kg

- Certification: ISO9001, ROHS

- Warranty Period: 180 Days

Product Introduction

VG1095094002 is a dedicated alternator developed for Sinotruk heavy-duty trucks matched with Weichai WD615 engine. It adopts professional automotive-grade manufacturing technology, equipped with high-quality oxygen-free copper coil, imported rectifier bridge and high-temperature resistant carbon brush, ensuring stable power generation performance under high load and complex working conditions. As a core electrical spare part for heavy-duty trucks, it provides reliable power supply for vehicle electrical systems, features excellent durability, low failure rate and easy maintenance, widely applied in Sinotruk HOWO full series heavy-duty vehicles, and is a preferred replacement part for after-sales maintenance of commercial vehicles.
