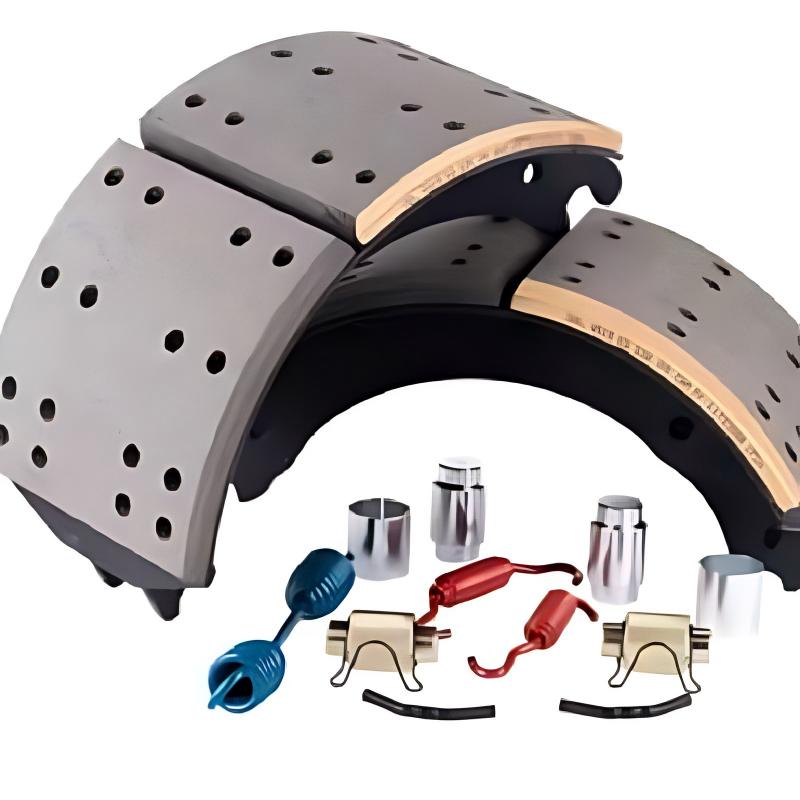

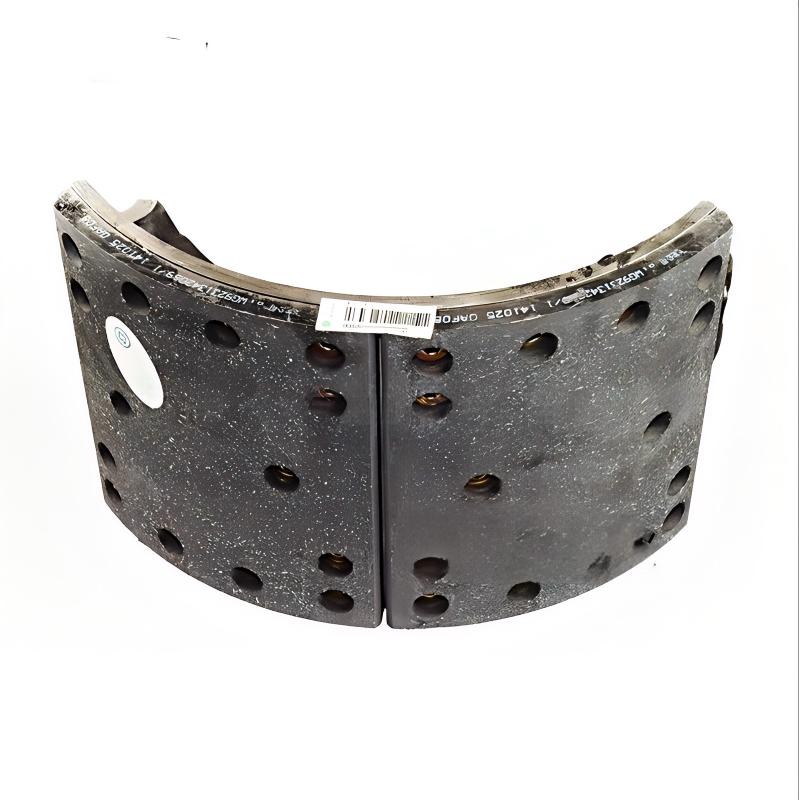

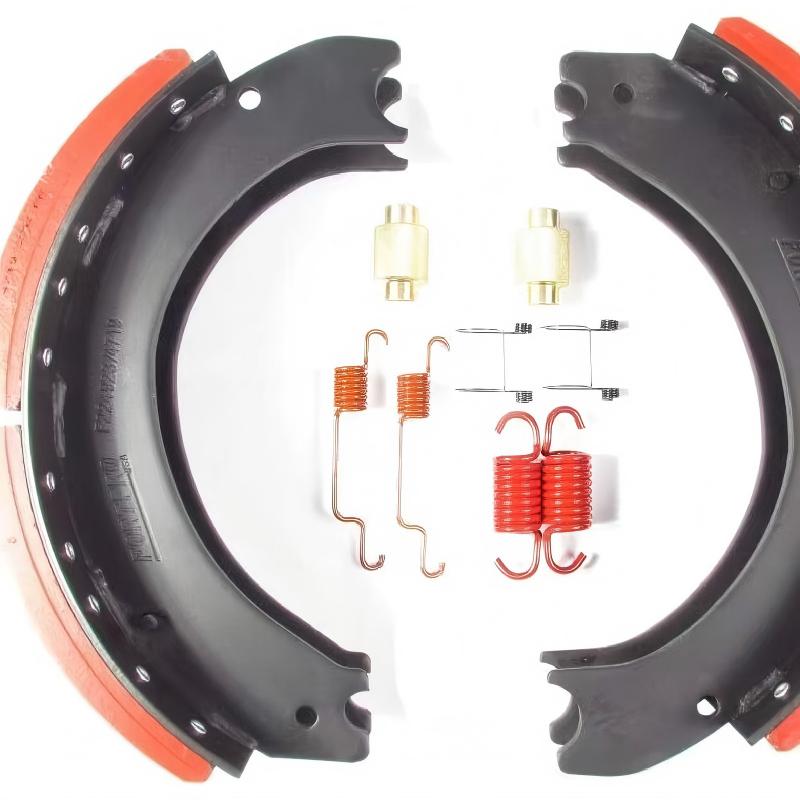

Brake Shoe for Sinotruk HOWO
- - High-Strength Steel Shoe: Stamped/cast steel, anti-cracking under heavy load
- - Premium Lining: Semi-metallic / ceramic composite, high friction, long life
- - Perfect Fit: OEM standard, bolt-on installation, no modification
- - Stable Braking: Good heat dissipation, low wear, stable braking force
- - Wear-Resistant: Suitable for construction, mining, heavy-load conditions
- - Certified: ISO/TS16949, 100% dynamic balance & braking test
Common OEM Part Numbers
- Front Brake Shoe- WG9100440030 (Standard Front)
- 199000440031 (HOWO 371 Front)
- AZ9100440018
- Rear Brake Shoe (14/10/6 holes)- WG9231342070 / WG9231342072 (14-hole Rear)
- AZ9761450100 / AZ9761451160 (MCP16/MCY13 Axle)
- WG9200340068 (Rear Brake Lining)
Technical Specifications
- Material: 45# carbon steel shoe + semi-metallic/ceramic lining
- Hole Types: 6/10/14 holes (front/rear axle)
- Lining Width: 180–250 mm (rear common 220/250 mm)
- Surface: Black anti-rust painting / phosphating
- Fit: Front/rear drum brake, STR/AC16/MCY13 axles
- Weight: 12–20 kg/set (varies by type)
- Warranty: 6–12 months
Product Introduction
Brake shoe is a key component of drum brake system. When braking, the brake camshaft pushes the brake shoe to expand, pressing the friction lining against the brake drum to generate braking force.
- Front Shoes: Smaller size, lighter braking force
- Rear Shoes: Larger (14-hole), heavier load, stronger braking
It ensures safe and stable braking under heavy load, harsh road and long downhill conditions.
Applicable Models
- Engine: WD615 (336HP, 371HP, 375HP, 380HP, 420HP)
- Models: HOWO 371, 375, A7, T7H, N5G, N7B
- Axles: STR, AC16, HC16, MCY11, MCY13, MCP16
- Types: 6x4 / 8x4 dump, tractor, cargo, mining trucks
