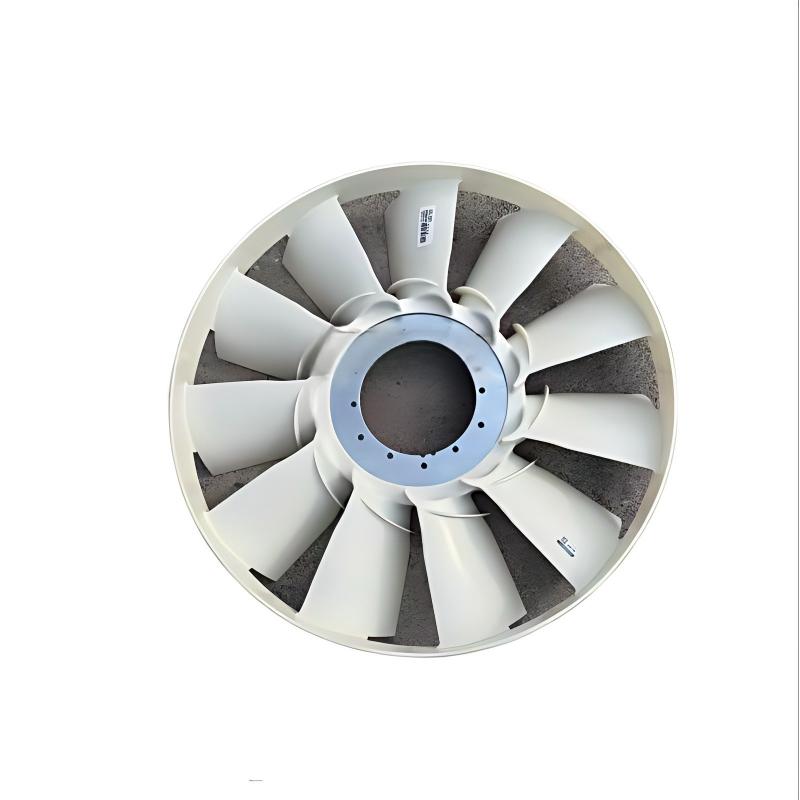

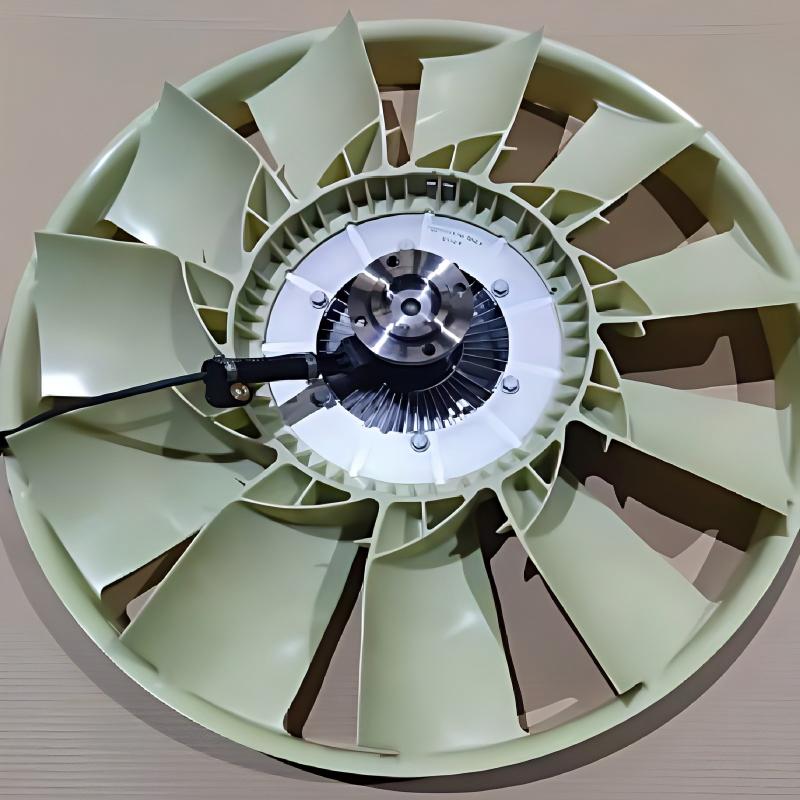

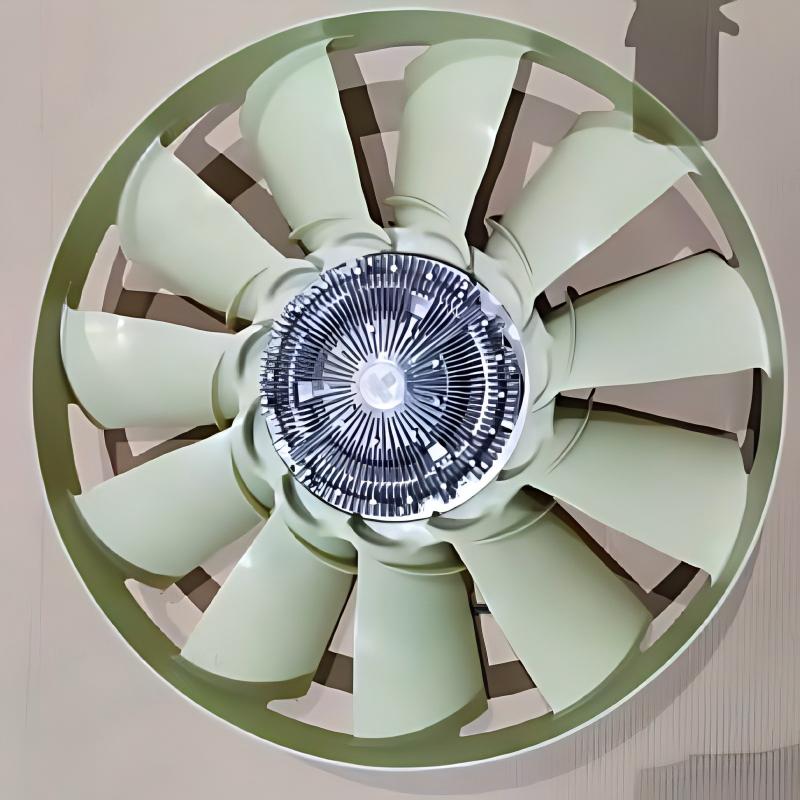

Fan Blade for Sinotruk HOWO

- Precision dynamic balance treatment, stable operation, low vibration and low noise
- High-temperature resistant engineering plastic / reinforced nylon material
- Efficient wind volume design, improves engine cooling performance
- Good toughness, anti-breaking, anti-aging, suitable for long-term heavy-duty work
- Standard mounting hole distance, perfectly matches clutch fan and hub
- Direct bolt-on installation, no modification needed

Product Parameters

- Overall Diameter: 620mm

- Number of Blades: 8 / 10 blades (optional)

- Material: Reinforced nylon / high-temperature plastic

- Mounting Hole Diameter: Φ10mm, Φ12mm

- Mounting Bolt Circle Diameter: Φ140mm

- Net Weight: Approx. 1.8kg

- Suitable Temperature Range: -40℃ to +120℃

- Rotation Direction: Clockwise / Counterclockwise

Product Introduction

This engine fan blade is specially designed for cooling systems of Sinotruk HOWO series trucks. Made of high-strength heat-resistant composite material, it provides strong wind output while maintaining stable high-speed rotation. With strict dynamic balance detection, it effectively reduces engine vibration and noise. It is a key component to ensure normal operating temperature of diesel engines under heavy load, high temperature and harsh working conditions.

Applicable Models

- Sinotruk HOWO 7 Series (336HP, 371HP, 380HP, 420HP)

- Sinotruk HOWO A7, T7H, TX, TH7

- Sinotruk HOWO N7, MAX Series

- Engines: WD615, D10, D12, WP10, WP12 series

- HOWO 6×4 tractor, 4×2 cargo truck, 8×4 dump truck, mixer, mining truck
