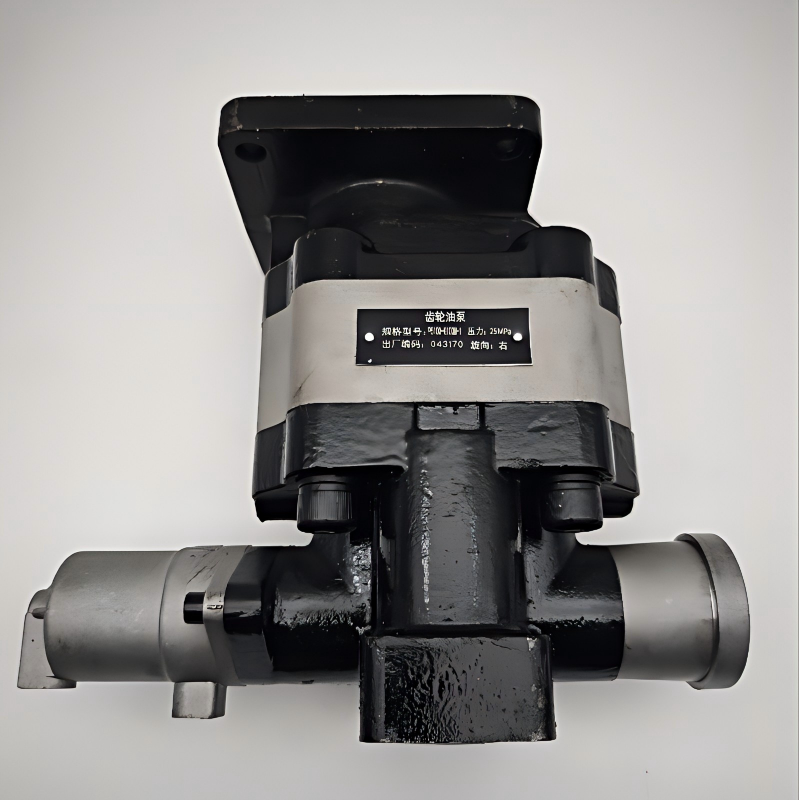

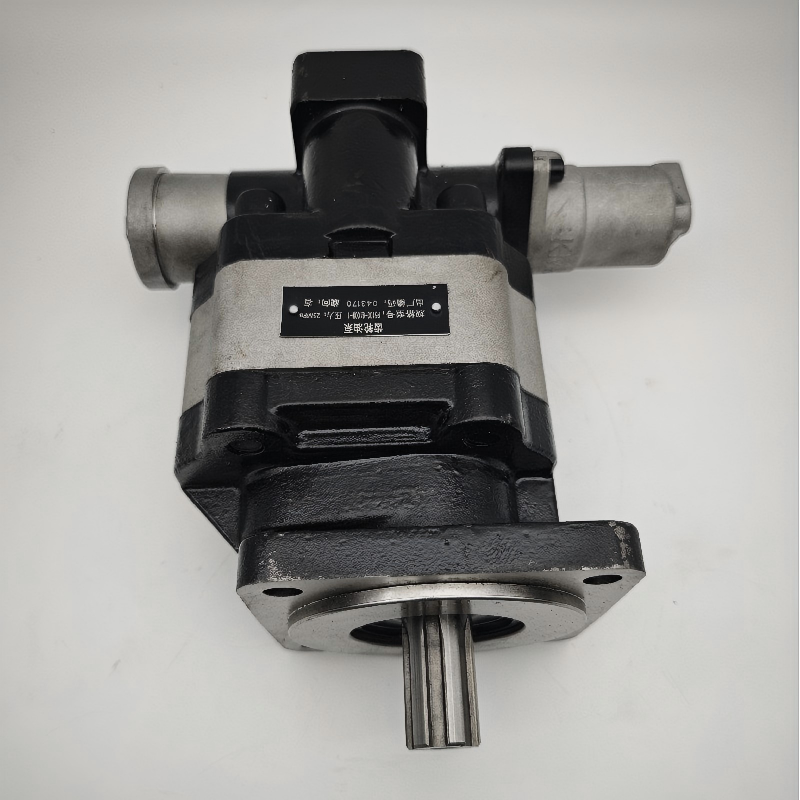

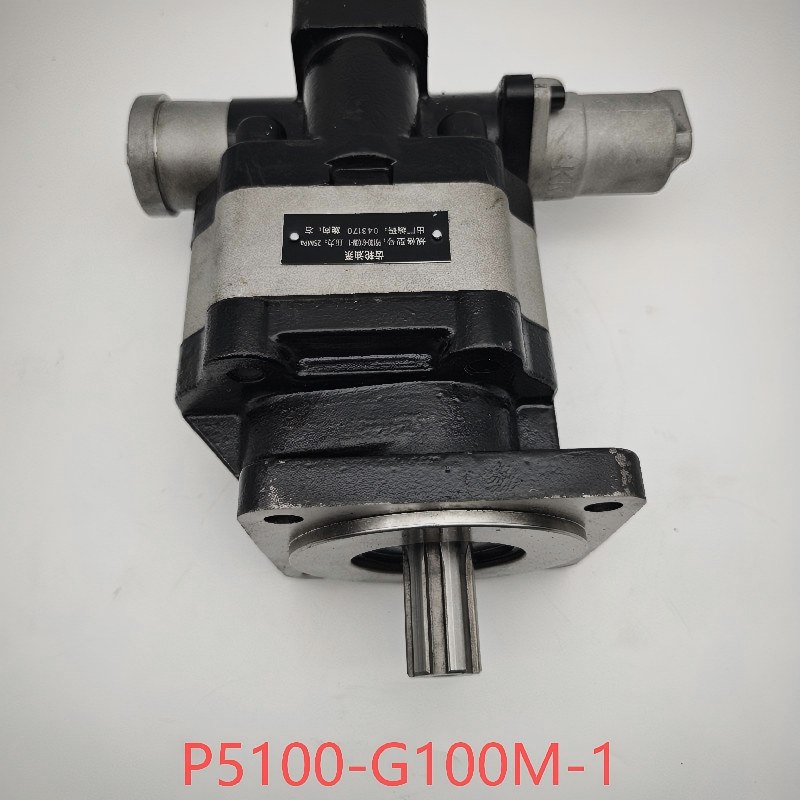

P5100-G100M-1 Hydraulic Gear Pump for Sinotruk HOWO
- - 100% OEM Compatibility: Precision-matched to original Sinotruk HOWO specifications. Direct replacement with no modifications required for installation.
- - Heavy-Duty Construction: High-strength cast iron housing paired with alloy steel gears ensures exceptional durability and impact resistance under extreme loading conditions.
- - Integrated Valve Design: Built-in overflow valve simplifies hydraulic system layout, reduces potential leak points, and ensures stable pressure control during lifting operations.
- - High Efficiency Output: Rear port inlet/outlet design with square piston structure delivers consistent flow and rapid response for reliable cargo box lifting.
- - Long Service Life: Equipped with floating shaft sleeves and wear-resistant coatings to minimize internal friction, extending operational lifespan and reducing maintenance costs.
Item Specification
Model P5100-G100M-1
Type Hydraulic Gear Pump (with Integral Relief Valve)
Rated Pressure 25MPa
Rotation Direction Right-handed
Mounting Type Square Flange Mount
Shaft Type Multi-spline Spline Shaft
Dimensions (L×W×H) 240mm × 185mm × 210mm
Flange Hole Size 4 × Mounting Holes (φ14mm)
Net Weight 14.5kg
Applicable Medium Anti-wear Hydraulic Oil
Product Introduction
The P5100-G100M-1 is a core power component engineered specifically for the hydraulic systems of Sinotruk HOWO heavy-duty trucks. Designed primarily for dump trucks and engineering lifting vehicles, this pump delivers stable and high-pressure hydraulic power to actuate cargo box lifting systems. Constructed with industrial-grade materials and featuring an integrated valve assembly, it offers superior performance, minimal leakage, and rapid responsiveness. It is engineered to withstand the rigorous demands of heavy-duty transport and construction site operations, making it an ideal replacement part for maintaining the efficiency of HOWO truck hydraulic systems.
Applicable Models
Suitable for all Sinotruk HOWO dump trucks and engineering heavy-duty trucks, including HOWO A7, T7H, TX series and other lifting-equipped models.
