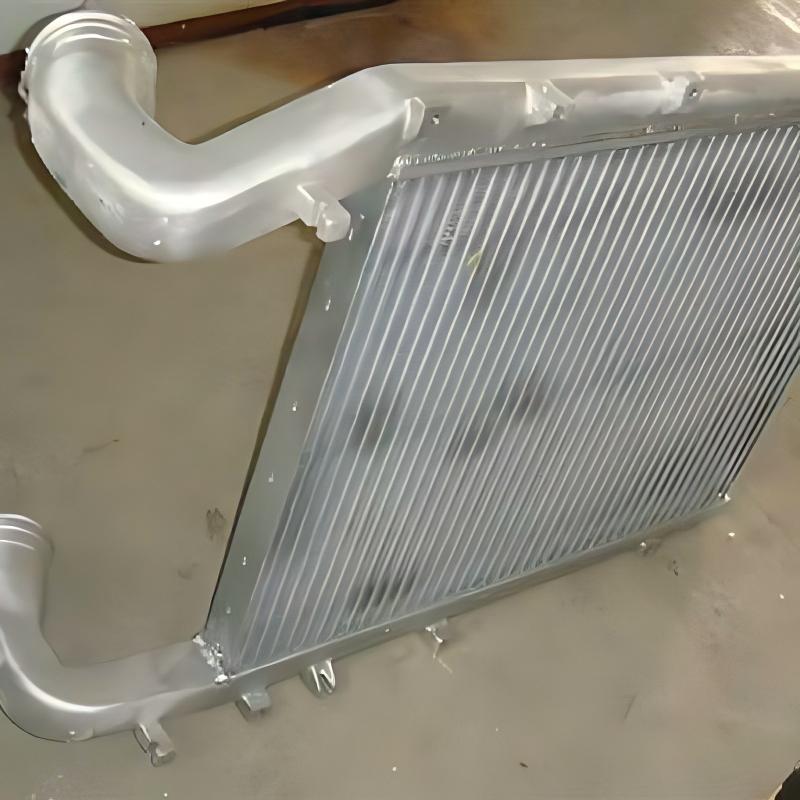

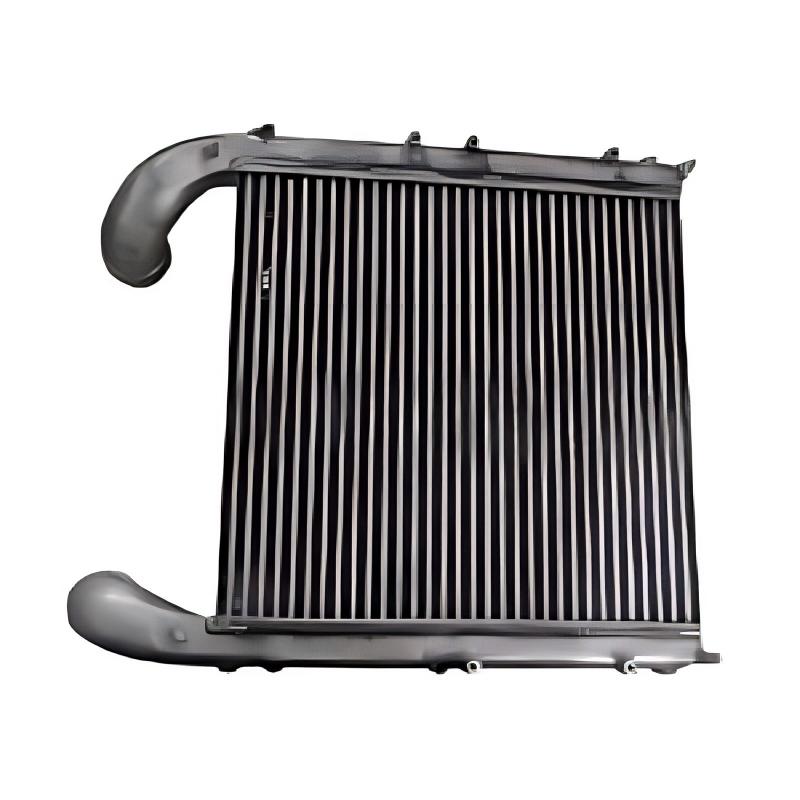

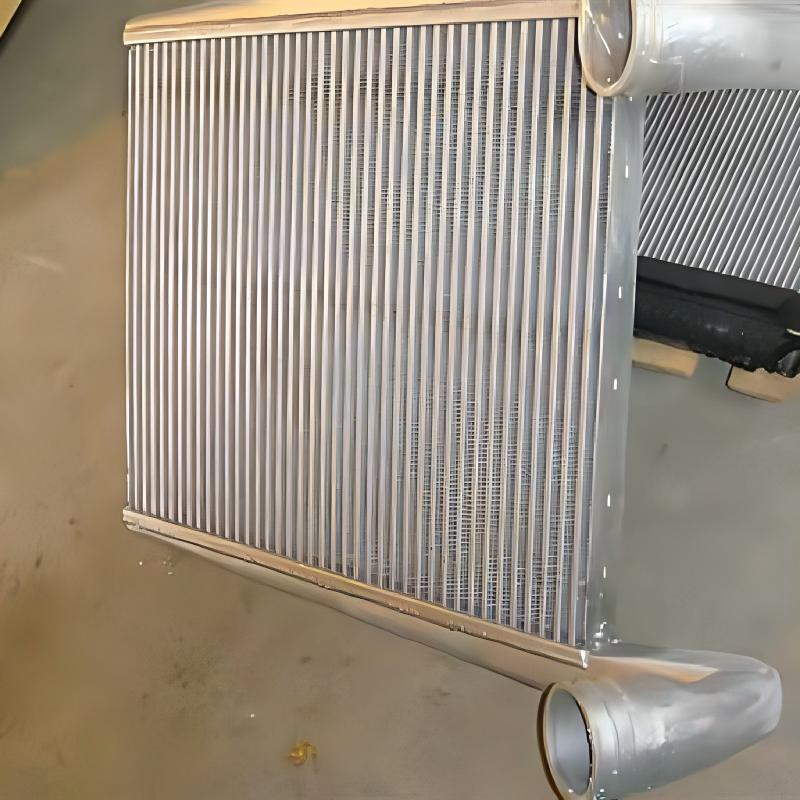

Intercooler for Sinotruk HOWO

- Full aluminum bar-plate structure for high heat dissipation efficiency and lightweight
- Improves intake air density, enhances engine power output and fuel economy
- Strong pressure resistance, no air leakage, stable performance under heavy load
- Precision welded core, anti-corrosion, anti-fatigue, long service life
- OEM standard size, perfect matching with original piping, direct installation
- Effectively protects engine from high temperature damage

Product Parameters

- Overall Dimensions (L×W×H): 680mm × 480mm × 120mm

- Material: Full aluminum alloy (core & tank)

- Inlet/Outlet Port Diameter: Φ76mm, Φ80mm

- Mounting Hole Diameter: Φ12mm, Φ14mm

- Net Weight: Approx. 12.5kg

- Heat Dissipation Type: Air-to-Air Intercooler

- Working Pressure: 0.2–0.4MPa

Product Introduction

This intercooler is specially designed for turbocharged Sinotruk HOWO diesel engines. It cools the high-temperature compressed air from the turbocharger, increases intake oxygen content, improves combustion efficiency, and enhances engine power. Made of high-quality aluminum alloy with professional welding technology, it features strong pressure resistance, excellent heat dissipation and long durability. It is an essential component for engine performance and reliability.

Applicable Models

- Sinotruk HOWO 7 Series (336HP, 371HP, 380HP, 420HP)

- Sinotruk HOWO A7, T7H, TX, TH7

- Sinotruk HOWO N7, MAX Series

- HOWO 6×4 tractor, 4×2 cargo truck, 8×4 dump truck, mixer truck, mining truck

- Engines: WD615, D10, D12 series
