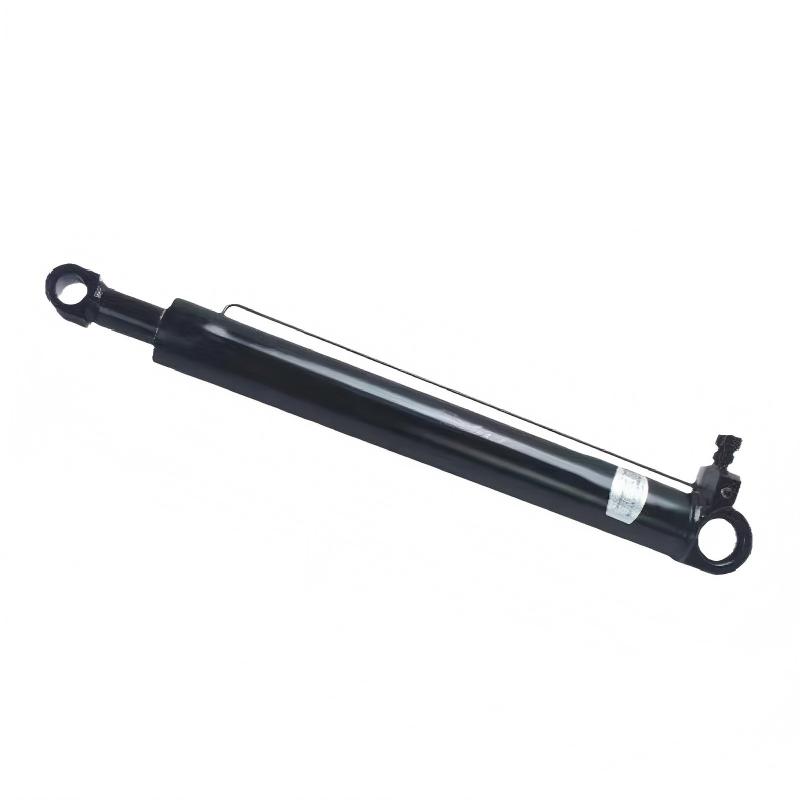

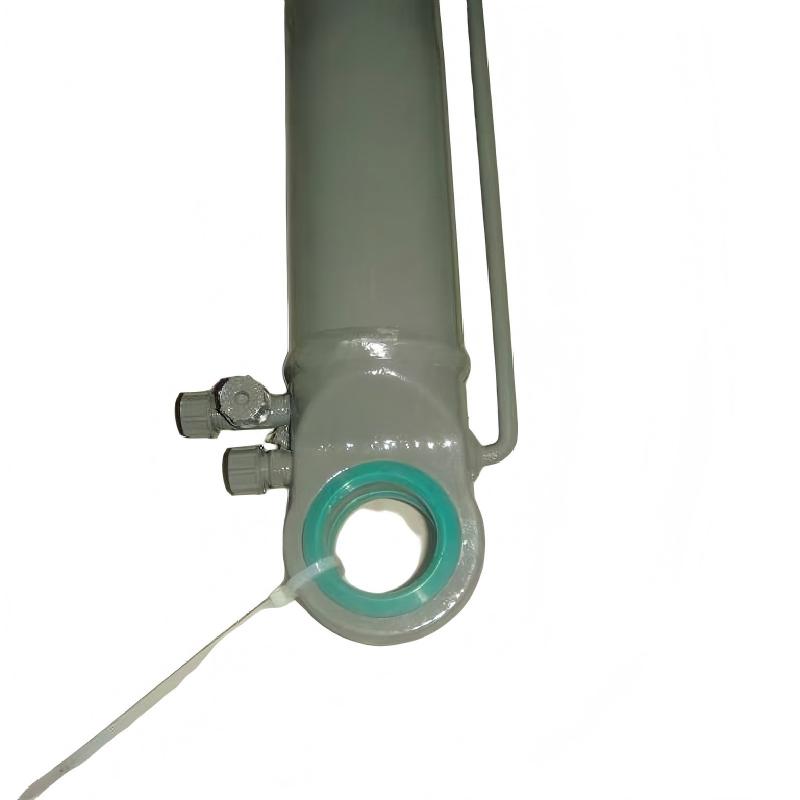

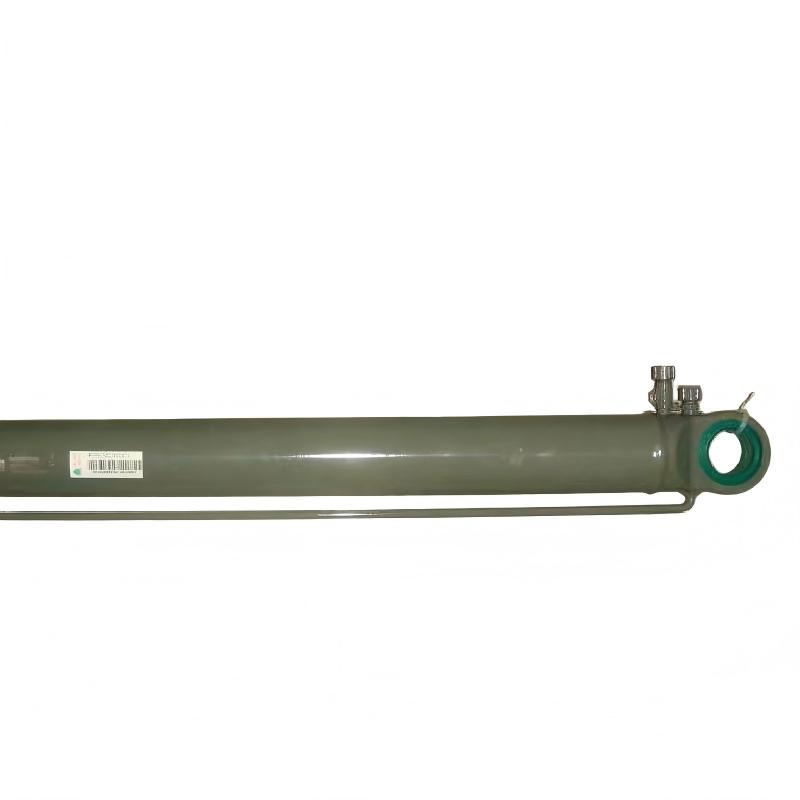

Lifting Cylinder for Sinotruk HOWO

- High-strength seamless steel tube, strong pressure resistance and long service life
- Multi-stage sealing structure, no oil leakage, stable lifting and lowering
- High load-bearing design, suitable for heavy-duty mining and construction dump trucks
- Precision honed inner wall, low friction, smooth movement
- Corrosion resistant coating, adapts to harsh working environments
- Standard mounting size, direct replacement without modification

Product Parameters

- Overall Dimensions (L×W×H): 1850mm × 220mm × 200mm

- Material: High-strength alloy steel

- Bore Diameter: Φ110mm / Φ125mm

- Stroke: 3800mm – 6000mm (customizable)

- Mounting Hole Diameter: Φ40mm, Φ50mm

- Working Pressure: 16 – 20MPa

- Net Weight: Approx. 115kg

- Type: Multi-stage telescopic hydraulic cylinder

Product Introduction

This lifting cylinder is specially designed for Sinotruk HOWO dump trucks. It adopts multi-stage telescopic hydraulic structure with high-strength alloy steel material and professional sealing system. It provides stable and powerful lifting force for truck buckets under heavy load conditions. The cylinder features high pressure resistance, wear resistance and no oil leakage, ensuring reliable operation in mining, construction and engineering transportation.

Applicable Models

- Sinotruk HOWO 6×4 Dump Truck

- Sinotruk HOWO 8×4 Dump Truck

- Sinotruk HOWO 7 Series 336HP 371HP 380HP 420HP

- Sinotruk HOWO A7, T7H, TX, TH7 Tipper Models

- Mining dump trucks, engineering transport trucks, mixer chassis
